Led Rental Screen

LED RENTAL
SCREEN

Support personalized custom cabinet，super easy to instal

Professional custom cabinets, to provide you with the most suitable rental screen
product solutions.

BASIC PARAMETERS

P3.91-16S

P3.91-16S-Outdoor

P4.81-13S

P4.81-13S-Outdoor

Physical point spacing: 3.91mm	Module size: 250x250mm	Unit box size: 500x1000mm
Physical density: 65536 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64*64=4096 DOTS
Module weight: 0.55 KG
Cabinet resolution: 128x256	Cabinet area: 0.25m²	Box weight: 13.57KG±0.05KG
The Main Technical Parameters
The best viewing distance: 3m～45m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜600W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/16 scan	Switching frequency ≧50/60Hz
Refresh frequency: ≧1920Hz	White balance brightness: ≥700cd/m²	Maximum power ≤40W
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH3.91-16S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 3.906mm	Module size: 250x250mm	Unit box size: 500x1000mm
Physical density: 65536 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64*64=4096 DOTS
Module weight: 0.23 KG
Cabinet resolution: 128x256	Cabinet area: 0.25m²	Box weight: 15.3KG±0.05KG
The Main Technical Parameters
The best viewing distance: 3m～60m	Viewing angle level ≧160° optional	Vertical ≥120° optional
Average power consumption:＜600W/m²	Maximum power consumption＜1200w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/16 scan	Switching frequency ≧50/60Hz
Refresh frequency: ≧3840Hz	White balance brightness: ≥3200cd/m²	Maximum power ≤36W
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH3.906-16S	Package form: 3in1	LED packaging method: 1919

Physical point spacing: 4.81mm	Module size: 250x250mm	Unit box size: 500x500x80mm
Physical density: 43264 dots/m²	Luminous point color: 1R1G1B	Module resolution: 52*52=2704 DOTS
Module weight: 0.67 KG
Cabinet resolution: 104x104	Cabinet area: 0.25m²	Box weight: 6.1KG±0.05KG
The Main Technical Parameters
The best viewing distance: 4m～48m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/13 scan	Switching frequency ≧50/60Hz
Refresh frequency: ≧1920Hz	White balance brightness: ≥800cd/m²	Maximum power ≤40W
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH4.81-13S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 4.81mm	Module size: 250x250mm	Unit box size: 500x1000mm
Physical density: 433264 dots/m²	Luminous point color: 1R1G1B	Module resolution:52*52=2704 DOTS
Module weight: 0.53 KG
Cabinet resolution: 104x208	Cabinet area: 0.5m²	Box weight: 122.16KG±0.05KG
The Main Technical Parameters
The best viewing distance: 4m～70m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜500W/m²	Maximum power consumption＜1200w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/13 scan	Switching frequency ≧50/60Hz
Refresh frequency: ≧1920Hz	White balance brightness: ≥4000cd/m²	Maximum power ≤40W
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH4.81-13S	Package form: 3in1	LED packaging method: 1921

Core Advantage

Customizable LED rental screens can meet various indoor and outdoor
scenarios.

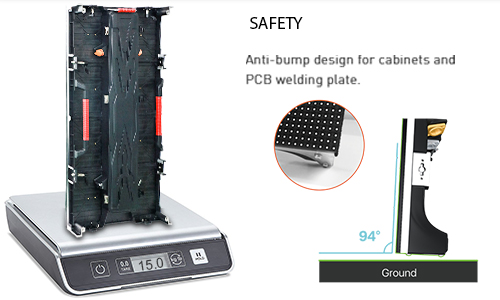

Safety

Anti-Bump design for cabinet and PCB welding plate. Durable nature makes
maintenance cost lower.

Quality Assurance

Possess superior quality and customizable attributes.

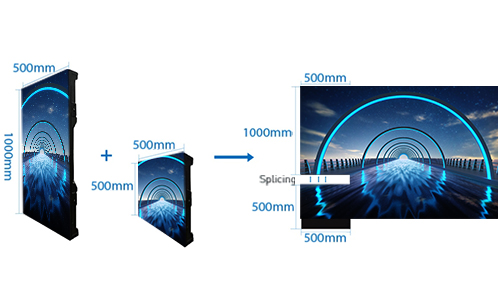

Free Splicing

Support custom size, free combination of splicing screens, to achieve various
display effects.
