LED FULL-COLOR OUTDOOR SCREEN

LED FULL-COLOR
OUTDOOR SCREEN

Professional outdoor display solution provider

Professional outdoor high-quality full-color display customization.
Personalized customization and provide the best solution.

BASIC PARAMETERS

P2.5-16S

P3-16S

P4-8S

P5-8S

P6-8S

P8-4S

P10-4S

Physical point spacing: 2.5mm	Module size: 320x160mm	Physical density: 160000 dots/m²
Module resolution: 128*64=8192 DOTS	Luminous point color: 1R1G1B
The Main Technical Parameters
The best viewing distance: 2.5m～40m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/16 scan	Switching frequency ≧60Hz
Refresh frequency: ≧1920Hz	White balance brightness: ≥5000cd/m²
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN7 / WIN10
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2.5-16S	Package form: 3in1	LED packaging method: 1415

Physical point spacing: 3mm	Module size: 192x192mm	Unit box size: 576x576mm
Physical density: 111111 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64*64=4096 DOTS
Module weight: 0.37 KG
Cabinet resolution: 192x192	Cabinet area: 0.332m²	Die-cast aluminum box weight: 10.5KG±0.05KG
The Main Technical Parameters
The best viewing distance: 3m～50m	Viewing angle level ≧140° optional	Vertical ≥120° optional
Average power consumption:＜350W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/16 scan	Switching frequency: 50/60Hz
Refresh frequency: ≧1000~1920Hz	White balance brightness: ≥4000cd/m²	Working voltage (AC110/220 optional)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000,Win7/8,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH3-16S	Package form: 3in1	LED packaging method: 1921

Physical point spacing: 4mm	Module size: 256*128mm	Unit box size: 512*512mm
Physical density: 62500 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64*32=2048 DOTS
Module weight: 0.31 KG
Cabinet resolution: 128x128	Cabinet area: 0.262144m²	Die-cast aluminum box weight: 7.4KG±0.05KG
The Main Technical Parameters
The best viewing distance: 4m～65m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜1000W/m²	Maximum power consumption＜2000w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/8 scan	Maximum power ≤40W
Refresh frequency: ≧1920Hz	White balance brightness: ≥5000cd/m²	Frame change frequency≧50/60
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH4-8S	Package form: 3in1	LED packaging method: 1921

Physical point spacing: 5mm	Module size: 160x160mm	Unit box size: 960x960mm
Physical density: 40000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 32*32=1024 DOTS
Module weight: 0.2 KG
Cabinet resolution: 192x192	Cabinet area: 0.9216m²
The Main Technical Parameters
The best viewing distance: 5m～72m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜700W/m²	Maximum power consumption＜1400w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/8 scan	Switching frequency ≧60Hz
Refresh frequency: ≧300Hz	White balance brightness: ≥5000cd/m²	Working voltage (AC)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH5-8S	Package form: 3in1	LED packaging method: 2727

Physical point spacing: 6mm	Module size: 192x192mm	Unit box size: 768x768mm
Physical density: 27777 dots/m²	Luminous point color: 1R1G1B	Module resolution: 32*32=1024 DOTS
Module weight: 0.4 KG
Cabinet resolution: 128x128	Cabinet area: 0.589824m²	Box weight: 16.21KG±0.05KG
The Main Technical Parameters
The best viewing distance: 6m～80m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜600W/m²	Maximum power consumption＜1200w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/8 scan	Switching frequency ≧60Hz
Refresh frequency: ≧300Hz	White balance brightness: ≥6300cd/m²	Working voltage (AC)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH6-8S	Package form: 3in1	LED packaging method: 2727

Physical point spacing: 8mm	Module size: 320x160mm	Unit box size: 960x960x98mm
Physical density: 15625 dots/m²	Luminous point color: 1R1G1B	Module resolution: 40*20=800 DOTS
Module weight: 0.43 KG
Cabinet resolution: 120x120	Cabinet area: 0.9216m²	Box weight: 20KG±0.05KG
The Main Technical Parameters
The best viewing distance: 8m～90m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜600W/m²	Maximum power consumption＜1200w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/4 scan	Switching frequency ≧60Hz
Refresh frequency: ≧300Hz	White balance brightness: ≥6300cd/m²	Working voltage (AC)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH8-4S	Package form: 3in1	LED packaging method: 3535

Physical point spacing: 10mm	Module size: 320x160mm	Unit box size: 960x960mm
Physical density: 10000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 32*16=512 DOTS
Module weight: 0.43 KG
Cabinet resolution: 96x96	Cabinet area: 0.9216m²	Box weight: 20KG±0.05KG
The Main Technical Parameters
The best viewing distance: 10m～100m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/4 scan	Switching frequency ≧60Hz
Refresh frequency: ≧300Hz	White balance brightness: ≥5000cd/m²	Working voltage (AC)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH10-4S	Package form: 3in1	LED packaging method: 3535

HD without distortion

Durable/ High brush/ HD/no delay/ Customizable size

Seamless Splicing

Seamless and frameless splicing, adjustable gap, flexible installation.

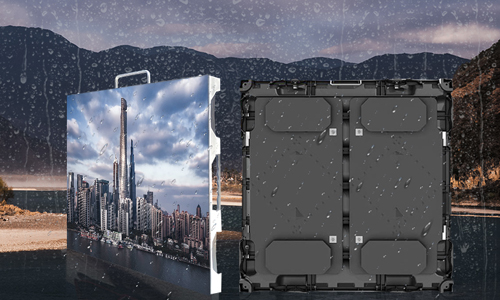

IP65 Protection

Anti-collision / Dustproof / Shockproof / Front waterproof

Combined freely

Different size screen panels can be combined. Picture synchronization, no
deviation
