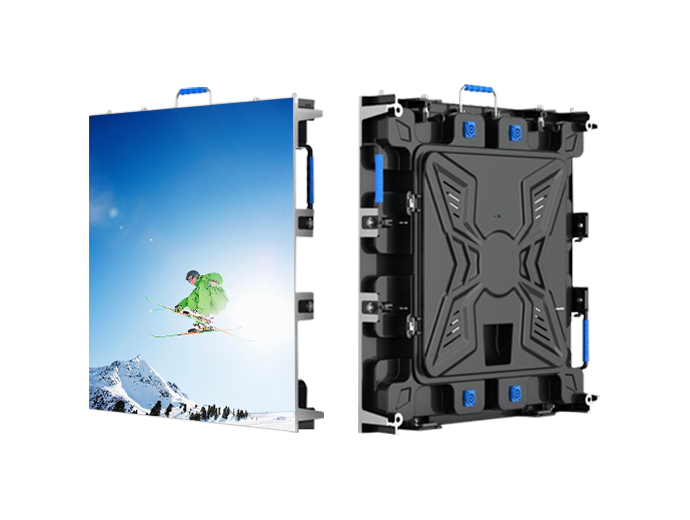

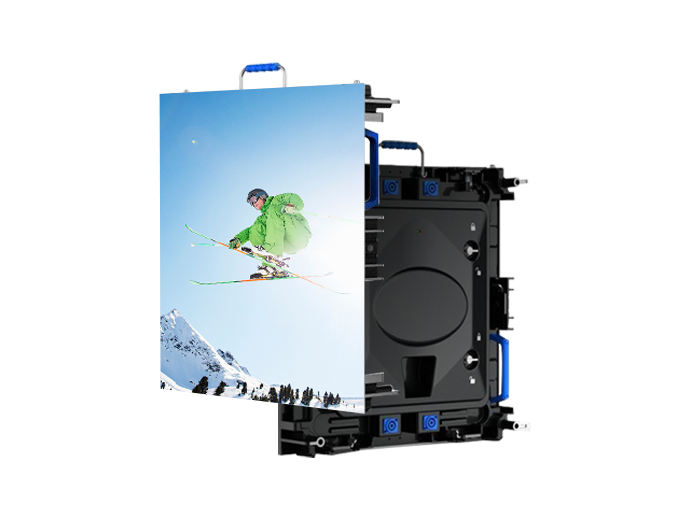

LED FULL-COLOR INDOOR SCREEN

LED FULL-COLOR
INDOOR SCREEN

Professional indoor screen solutions provider

Ultra-wide viewing angle, 3840Hz refresh rate, customized Snap-on mask design.
Not limited to the style you see, welcome to consult and customize.

BASIC PARAMETERS

P2.5-32S

P2.5-32S-320x160

P2-32S

P2-40S

P3-32S

P4-16S

P4-20S

P5-16S

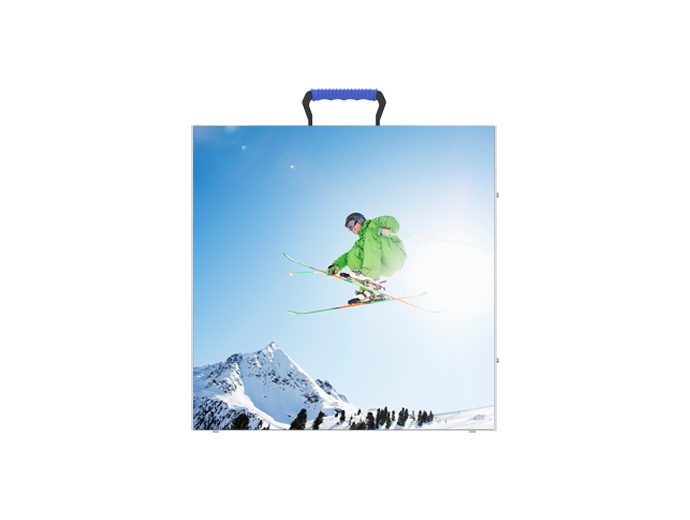

Physical point spacing: 2.5mm	Module size: 160x160mm	Unit box size: 640x640x68mm
Physical density: 160,000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64x64=4096 DOTS
Module weight: 0.24KG

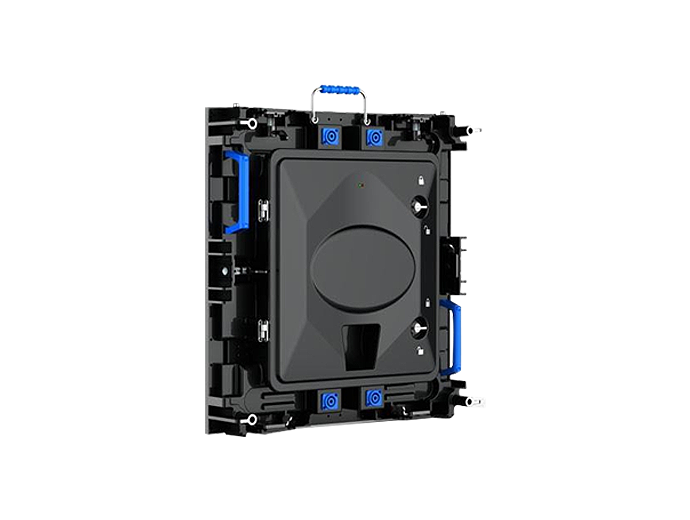

Cabinet resolution: 256x256	Cabinet area: 0.4096m²	Die-cast aluminum box weight: 11.64KG±0.05KG
The Main Technical Parameters
The best viewing distance: 2.5m～40m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜600W/m²	Maximum power consumption＜1200w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Maximum power ≤18W
Refresh frequency: ≧2880Hz	White balance brightness: ≥1000cd/m²	Frame change frequency: ≧50/60
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2.5-32S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 2.5mm	Module size: 320x160mm	Unit box size: 640x640x68mm
Physical density: 160,000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 128x64=4096 DOTS
Module weight: 0.24KG
Cabinet resolution: 256x256	Cabinet area: 0.4096m²	Die-cast aluminum box weight: 10.78KG±0.05KG
The Main Technical Parameters
The best viewing distance: 2.5m～30m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Maximum power ≤25W
Refresh frequency: ≧1920Hz	White balance brightness: ≥700cd/m²	Frame change frequency: 60Hz
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN7、WIN8,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2.5-32S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 2mm	Module size: 256x128mm	Unit box size: 512x512x68mm
Physical density: 250,000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 128x64=8192 DOTS
Module weight: 0.29KG
Cabinet resolution: 256x256	Cabinet area: 0.262144m²	Die-cast aluminum box weight: 7.18KG±0.05KG
The Main Technical Parameters
The best viewing distance: 2m～32m	Viewing angle level ≧160° optional	Vertical ≥120° optional
Average power consumption:＜400W/m²	Maximum power consumption＜1000w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Maximum power ≤20W
Refresh frequency: ≧1920Hz	White balance brightness: ≥500cd/m²	Frame change frequency:≥50/60Hz
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN98, WINXP, WIN2000,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2-32S	Package form: 3in1	LED packaging method: 1515 copper wire copper bracket lamp

Physical point spacing: 2mm	Module size: 320x160mm	Unit box size: 640x480x70mm
Physical density: 250,000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 160x80=12800 DOTS
Module weight: 0.29KG
Cabinet resolution: 320x240	Cabinet area: 0.3072m²	Die-cast aluminum box weight: 7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 2m～50m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜250W/m²	Maximum power consumption＜600w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/40 scan	Maximum power ≤25W
Refresh frequency: ≧3840Hz	White balance brightness: ≥800cd/m²	Frame change frequency: 60Hz
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN7, WIN8, WINXP, WIN2000,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2-40S	Package form: 3in1	LED packaging method: 1515

Physical point spacing: 3mm	Module size: 192x192mm	Unit box size: 576x576mm
Physical density: 111111 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64x64=4096 DOTS
Module weight: 0.24KG
Cabinet resolution: 192x192	Cabinet area: 0.331776m²	Die-cast aluminum box weight: 8.04KG
The Main Technical Parameters
The best viewing distance: 3m～40m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜600W/m²	Maximum power consumption＜1300w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Maximum power ≤12W
Refresh frequency: ≧960Hz	White balance brightness: ≥1800cd/m²	Frame change frequency:≥50/60Hz
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN98, WINXP, WIN2000,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH3-32S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 4mm	Module size: 256x256mm	Unit box size: 512x512x67mm
Physical density: 62500 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64x64=4096 DOTS
Module weight: 0.23KG
Cabinet resolution: 128x128	Cabinet area: 0.262144m²	Die-cast aluminum box weight: 6.61±0.05KG
The Main Technical Parameters
The best viewing distance: 4m～40m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜500W/m²	Maximum power consumption＜1000w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Maximum power ≤20W
Refresh frequency: ≧1920Hz	White balance brightness: ≥1000cd/m²	Frame change frequency:≥50/60Hz
Brightness adjustment	Brightness sensor automatic adjustment	16 levels adjustable
Computer operating system
WIN98, WINXP, WIN2000,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH4-16S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 4mm	Module size: 320x160mm	Unit box size: 640x640mm
Physical density: 62500 dots/m²	Luminous point color: 1R1G1B	Module resolution: 80x40=3200 DOTS
Module weight: 0.36KG
Cabinet resolution: 160x160	Cabinet area: 0.4096m²	Die-cast aluminum box weight: 10.5KG±0.05KG
The Main Technical Parameters
The best viewing distance: 4m～40m	Viewing angle level ≧140° optional	Vertical ≥120° optional
Average power consumption:＜300W/m²	Maximum power consumption＜600w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Working voltage (AC110/220V optional)
Refresh frequency: ≧3840Hz	White balance brightness: ≥700cd/m²	Frame change frequency:≥50/60Hz
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000,Win7/8,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH4-20S	Package form: 3in1	LED packaging method: 2121

Physical point spacing: 5mm	Module size: 320x160mm	Unit box size: 640x640mm
Physical density: 40000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 64*32=2048 DOTS
Module weight: 0.4 KG
Cabinet resolution: 128x128	Cabinet area: 0.4096m²	Die-cast aluminum box weight: 6.94KG±0.05KG
The Main Technical Parameters
The best viewing distance: 5m～30m	Viewing angle level ≧160° optional	Vertical ≥160° optional
Average power consumption:＜350W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/16 scan	Switching frequency ≧60Hz
Refresh frequency: ≧300Hz	White balance brightness: ≥900cd/m²	Working voltage (AC)
Brightness adjustment method
Brightness sensor automatic adjustment: 16 levels adjustable Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98、WINXP、WIN2000,Win7/8,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional optional) + DVI graphics card + main control card + optical fiber transmission (optional optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH5-16S	Package form: 3in1	LED packaging method: Black Lamp2121

Sense of Hierarchy

A black base with a simple design and special ultra-low reflection black technology,
showing exquisite contrast and rich details.

Modular Design

Able to customize products of various sizes and designs according to space
requirements and aesthetics.

Extreme Color Effect

LED HDR image refinement and image quality engine supported by HDR10+
provide users with better display images.

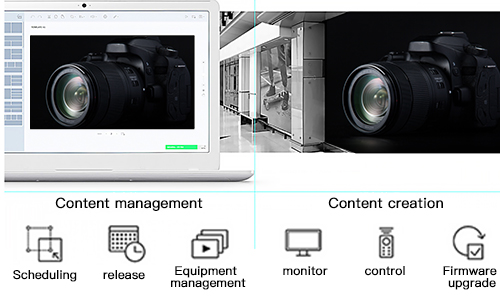

Overall Solution

By providing a variety of solutions, you can easily manage content and equipment.
Experience the difference of HBONY's LED display.
