BASIC PARAMETERS

P1.25-45S

P1.53-52S

P1.56-54S

P1.86-43S

P1.667-48S

P1.875-32S

P2.0-40S

Physical point spacing: 1.25mm	Module size: 300X168.75mm	Unit box size: 600×337.5mm
Physical density: 640,000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 240*135=32400 DOTS
Module weight: 0.4KG
Cabinet resolution: 480*270	Cabinet area: 0.2025m²	Die-cast aluminum box weight: 6.5KG±0.1KG
The Main Technical Parameters
The best viewing distance: 1.2m～15m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/45 scan	Exchange frequency 60Hz
Refresh frequency: ≧2880Hz	White balance brightness 700cd/m²	Working voltage (AC)
Brightness adjustment: 16 levels adjustable	Driver IC: ICN6263/FM6363	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.25	Package form: SMD	LED packaging method: 1010-0808

Physical point spacing: 1.53mm	Module size: 320x160mm	Unit box size: 640×480x70mm
Physical density: 427186 dots/m²	Luminous point color: 1R1G1B	Module resolution: 208*104=21632(DOTS)
Module weight: 0.18KG
Cabinet resolution: 416x312	Cabinet area: 0.3072m²	Die-cast aluminum box weight: 7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 1.5m～20m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜350W/m²	Maximum power consumption＜700w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/52 scan	Maximum power≤30W
Refresh frequency: ≧2880Hz	White balance brightness 700cd/m²	Frame change frequency≧50/60
Brightness adjustment: 16 levels adjustable	Driver IC: ICN2163/FM2065	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.53	Package form: 3in1	LED packaging method: 1212

Physical point spacing: 1.56mm	Module size: 300X168.75mm	Unit box size: 600×337.5mm
Physical density: 409600 dots/m²	Luminous point color: 1R1G1B	Module resolution: 192*108=20736DOTS
Module weight: 0.4KG
Cabinet resolution: 384x216	Cabinet area: 0.2025m²	Die-cast aluminum box weight: 6.5KG±0. 1KG
The Main Technical Parameters
The best viewing distance: 1.5m～20m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/54 scan	Exchange frequency: 60Hz
Refresh frequency: ≧2880Hz	White balance brightness 700cd/m²	Working voltage: AC
Brightness adjustment: 16 levels adjustable	Driver IC: ICN2163/FM2065	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.56	Package form: 3in1	LED packaging method: 1212

Physical point spacing: 1.86mm	Module size: 320x160mm	Unit box size: 640×480x70mm
Physical density: 289050 dots/m²	Luminous point color: 1R1G1B	Module resolution: 172*86=14792(DOTS)
Module weight: 0.18KG
Cabinet resolution: 344x258	Cabinet area: 0.3072m²	Die-cast aluminum box weight: 7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 1.8m～30m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/43 scan	Maximum power≤30W
Refresh frequency: ≧2880Hz	White balance brightness 700cd/m²	Frame change frequency≧50/60
Brightness adjustment: 16 levels adjustable	Driver IC: FM6263	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.86	Package form: 3in1	LED packaging method: 1515

Physical point spacing: 1.667mm	Module size: 320x160mm	Unit box size: 640×480x70mm
Physical density: 360000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 192*96=18432(DOTS)
Module weight: 0.18KG
Cabinet resolution: 384x288	Cabinet area: 0.3072m²	Die-cast aluminum box weight: 7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 1.6m～25m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/48 scan	Maximum power≤30W
Refresh frequency: ≧3840Hz	White balance brightness 700cd/m²	Frame change frequency≧50/60
Brightness adjustment: 16 levels adjustable	Driver IC: ICN2163/FM2065	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.667	Package form: 3in1	LED packaging method: 1212

Physical point spacing: 1.875mm	Module size: 240x240mm	Unit box size: 480x480x75mm
Physical density: 284444 dots/m²	Luminous point color: 1R1G1B	Module resolution: 128x128=16384(DOTS)
Module weight: 0.18KG
Cabinet resolution: 256x256	Cabinet area: 0.2304m²	Die-cast aluminum box weight: 6.7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 1.8m～28m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/32 scan	Switching frequency ≧60Hz
Refresh frequency: ≧1920Hz	White balance brightness: ≥600cd/m²	Frame change frequency≧50/60
Brightness adjustment: 16 levels adjustable	Driver IC: ICN6127/GS6238	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH1.875	Package form: 3in1	LED packaging method: 1515

Physical point spacing: 2.0mm	Module size: 320x160mm	Unit box size: 640x480x70mm
Physical density: 250000 dots/m²	Luminous point color: 1R1G1B	Module resolution: 160*80=12800(DOTS)
Module weight: 0.18KG
Cabinet resolution: 320*240	Cabinet area: 0.3072m²	Die-cast aluminum box weight: 7KG±0.05KG
The Main Technical Parameters
The best viewing distance: 2m～25m	Viewing angle level ≧160° optional	Vertical ≥140° optional
Average power consumption:＜400W/m²	Maximum power consumption＜800w/m²	Control method: synchronous control
Graphics card: DVI graphics card	Drive mode 1/40 scan	Maximum power≤30W
Refresh frequency: ≧2880Hz	White balance brightness: ≥700cd/m²	Frame change frequency≧50/60
Brightness adjustment: 16 levels adjustable	Driver IC: ICN2163/ICN2065	Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98, WINXP, WIN2000, etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PC TV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Mean time between failures: ≧5000 hours	Life span: 75000～100000 hours	Pixel out of control rate: <0.0002
Item classification: PH2.0	Package form: 3in1	LED packaging method: 1515

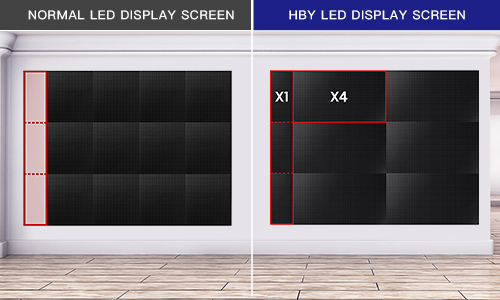

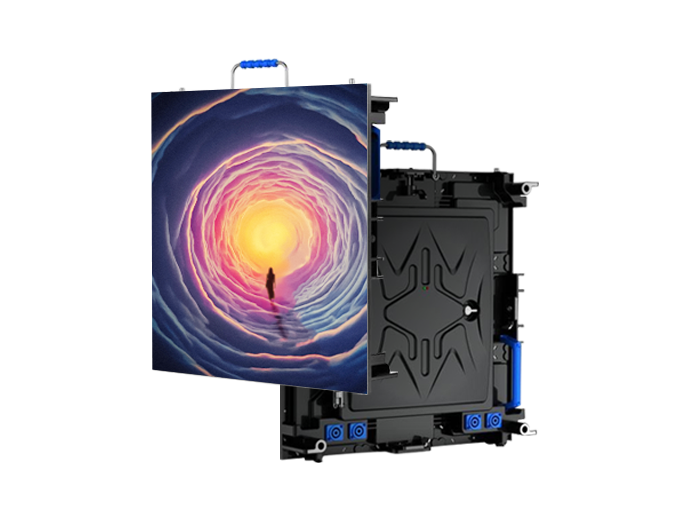

Easy to Install

Mini pitch LED screen customized sizes can meet any size requirements of customers and make installation easier.

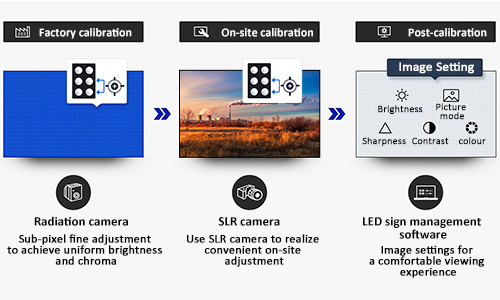

Pixel Calibration Technology

The added processing method of sub-pixel calibration of DSLR cameras can
bring excellent display effects.

Exquisite Visual Effects

LED HDR uses optimization technology to present lifelike images, and deep color
mapping can ensure the full expression of colors.

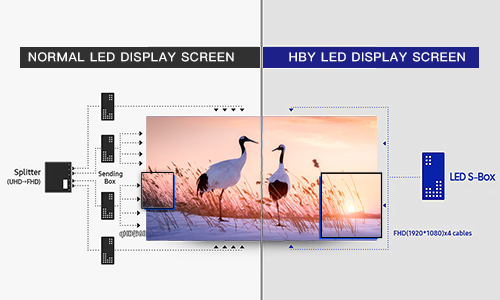

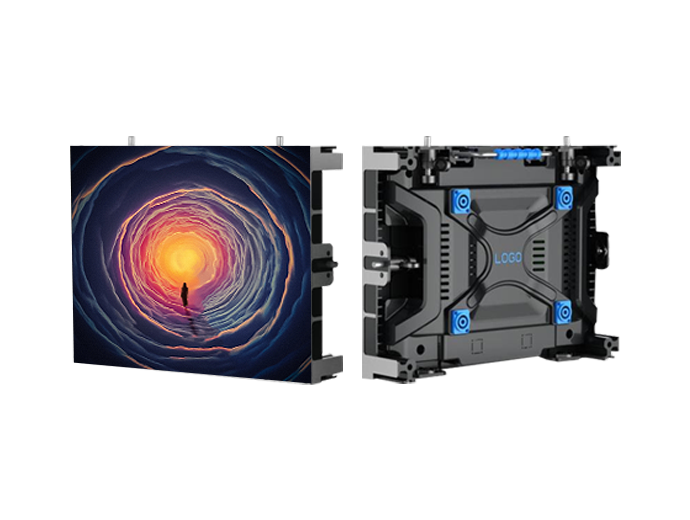

UHD Content Delivery

UHD content can be transmitted across multiple HBY series displays without the
need for external TV boxes or distributors. More efficient and faster.
