Intelligent monitoring platform

Project Description

In order to strengthen the safety of the enterprise, build a safety net! Menghai Shengheng Commodity Concrete Co., Ltd. introduced Winbond's splicing unit HBY-PJ490P to create an intelligent monitoring system platform.

As one of the professional concrete enterprises in Yunnan Province, Menghai Shengheng Commodity Concrete takes "quality first, service first" as its purpose. After arduous exploration and climbing, it has consolidated the cornerstone of enterprise development with characteristic hardware and developed unique characteristics. The way and the rapid development speed make the flowers of the construction industry bloom on this fertile soil.

One-stop solution to fully empower customers

In the docking project, Menghai Shengheng Commodity Concrete put forward the following requirements for the monitoring system: first, the system must have a central platform for unified management; secondly, it must have the functions of high-definition video acquisition, transmission, storage, and finally, to achieve high-definition video decoding. , Splicing control, display effect of window roaming.

After comprehensively integrating the needs of Menghaishengheng commodity concrete for the use of LCD splicing screens, Winbond has provided a professional one-stop solution with the goal of building a full HD monitoring system and improving the overall prevention and control capabilities. Using 15 LCD splicing units, displayed in the form of 3 rows and 5 columns, with HDMI high-definition matrix, a standardized large-screen display system is formed.

In order to achieve the "what you see is what you get" screen display effect, 49 -inch 3.5mm LCD splicing unit has played an important role in it. The brightness is as high as 500 cd/m2 , which makes the performance of the display better; the resolution of the whole screen is 1920*1080 , no matter from which angle it is viewed, it can maintain a clear and stunning picture effect; 7*24 hours of continuous and stable operation, Provide a stronger guarantee for the display screen.

HD matrix may support the 16 -way HDMI signal input, 16 -way HDMI signal output, the maximum accessible 16 computers HD signal, and then transmitted to 15 the screen block is provided to select a variety of monitoring personnel observation mode.

Efficient collaboration and deep empowerment of multiple scenarios

In the past, the monitoring equipment of Menghai Shengheng Commodity Concrete Monitoring Center had problems such as low resolution, poor display effect, inflexible control, and weak decoding ability in practical applications, and could not achieve the effects of real-time monitoring and centralized command and dispatch.

When the smart terminal system is completed, first of all, in terms of safety management, the focus of the smart terminal system is to prevent security incidents in advance. The monitoring personnel of the Menghai Shengheng Commodity Concrete Monitoring Center can understand the company's safety situation in real time through the high-definition display large screen, such as raw materials, semi-finished products, engineering equipment, entrance and exit personnel, and vehicle entry and exit.

In addition, because the high-definition matrix adopts a dedicated security codec chip and modular design, it not only guarantees the stable operation of the system, but also enables the LCD splicing screen to have functions such as encoding, splicing, segmentation, picture-in-picture, and roaming. Through the real-time transmission of the front-end camera, you can intuitively and concisely see the vehicle usage at each construction site and the operating status of each vehicle, such as whether the driver is speeding, idling, deliberately detouring, making phone calls, etc., to eliminate from the source All actions that affect driving. When every corner of the monitoring area is clearly displayed on the screen, it provides an intelligent monitoring method for the safety management of Menghai Shengheng commodity concrete.

At the same time, when there are some problems that need to be dealt with, the LCD splicing screen can not only call up the monitoring screen, and flexibly switch the monitoring display screen between large and small screens, but also report the scene situation to the relevant in the first time. Personnel, and quickly analyze and judge and comprehensively dispatch in the shortest time, to provide strong support for accurately and efficiently handling emergencies, so that Menghai Shengheng commodity concrete monitoring command is always online.

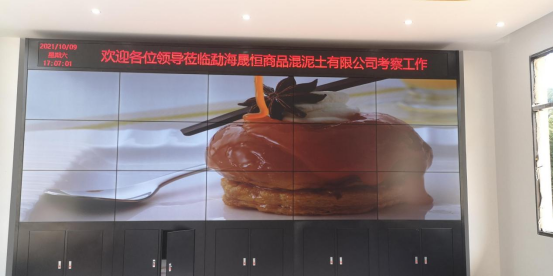

In order to bring better display technology to the Menghai Shengheng commodity concrete, in the installation, engineers combined with the actual application scenarios on site to choose a more matching and more suitable splicing screen cabinet installation method. Cabinet installation is the most commonly used installation method. It is suitable for environments with relatively abundant installation space. After installation, the thickness is generally about 40 cm. A certain amount of maintenance space can be reserved, which can facilitate the entry and exit of later technicians.

Today, the project is officially lit and delivered. After entering the Menghai Shengheng commodity concrete monitoring room, what you see is a frame of high-definition monitoring pictures uploaded from the large LCD screen. When the ultra-clear giant screen complements the bright and spacious use environment, it will surely become a solid foundation. Into the safety net of Menghaishengheng commodity concrete.
